Description

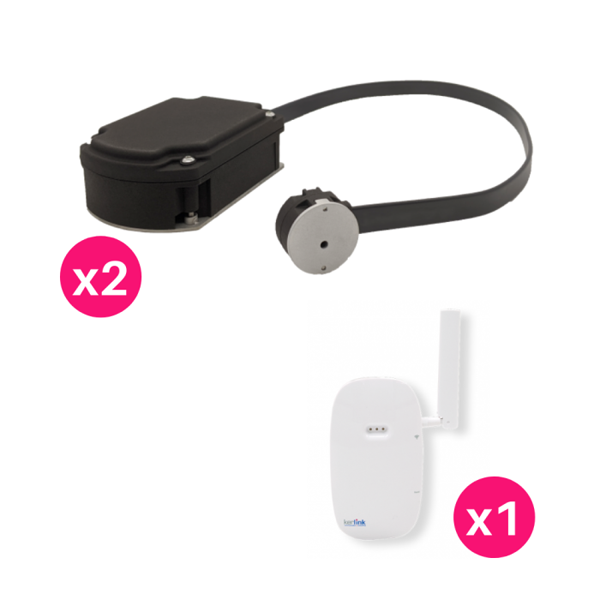

Evaluation kit RotaryIQ including 2 x Asystom devices, Kerlink LoRa iFemtoCell gateway evolution  ( 4g,ethernet)
Collect vibration, ultrasound, 3d-axial velocity, and acceleration, Temperature and Humidity

Prevent failure.  Know before it’s too late.  Save thousands in  repairs, and downtime

INDUSTRIAL QUALITY

Widely used in OIL and GAS, STEEL, MINING WATER MANAGEMENT, and MANUFACTURING

• server setup, and access to IoTLogIQ application.
• 2 x Asystom Sentinel sensor with extension probe Model: BS-DLX-101-00
•  Kerlink LoRaWan gateway IFemtoCell evolution with 4G and Ethernet for continuous communication.
• One-year warranty (exchange basis);
• Access to the server, network, and right to use AsystomPredict solution for one year.

Other included in the package:

• Configuring the dashboard to customer application
• Remote support to installation
• Technical training and 6-month assistance.

More About

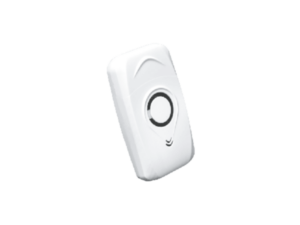

AsystomSentinel is an intelligent, multi-sensor device that captures and analyzes the signals from equipment and autonomously communicates the results to a secured, private cloud server via wireless LoRa (Long Range) network. It provides the real-time status of each monitored equipment and alerts in case of anomalies. All the collected data are available from a visualization platform that can be consulted on all media. The Asystom Sentinel device is managed remotely through the same visualization platform.

Over 3-5 years, powered by just 4 standard AA batteries. This device is capable of performing multiple measurements, making it possible to monitor 95% of machine applications.

Featured Highlights:

• The fusion of vibration and ultrasound measurements,
• The surface temperature of a machine,
• The ambient temperature and humidity.
• The utilization rate
• Alarms and  events based on  drift from normal operations
• FFT analysis for diagnostics  (  gas leaks,  lubrication, etc)

Connectivity:

LoRa wireless network (Long Range) through LoRaWan Gateway (Gateway sold separately) or, as an option, via private or public LoRaWAN.

Monitoring:

Vibration analysis :

•  Typical Bandwidth 1750 Hz
•  Sampling rate : 4.5 kHz
•  Full scale range /- 16g
•  Typical RMS noise : 7 mg
•  Nonlinearity : – 0.5 %

Acoustic analysis:

•  Typical Bandwidth 70 kHz
•  Sampling rate : 180 kHz (120 db SPL)
•  Signal-to-Noise : 64.3 dB

Total Harmonic Distortion :

• 0.20%

Surface temperature :

•  -40 °C to 85 °C
•  -104°F to 136°F

Package Includes:

• AsystomSentinel  device with extension probe for North America (US915)
• 1 Year Service access and network subscription
• 1 Year Standard exchange warranty
