Description

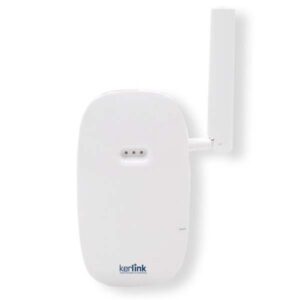

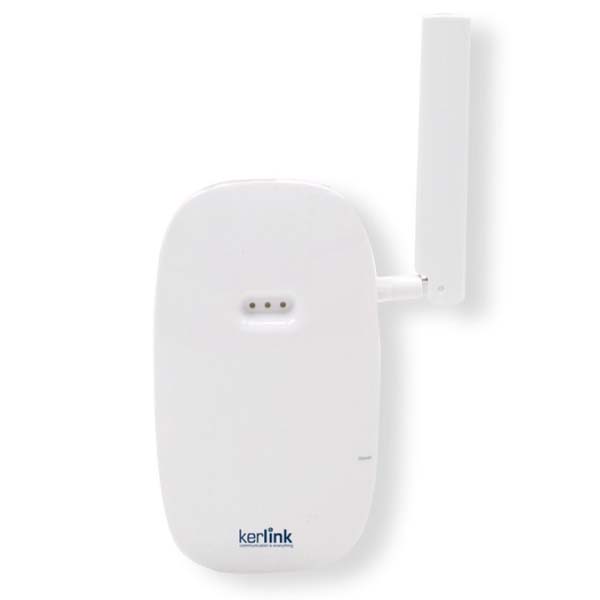

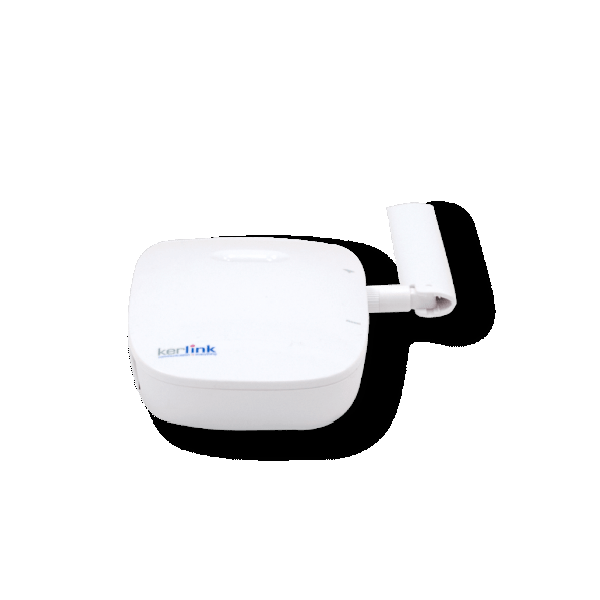

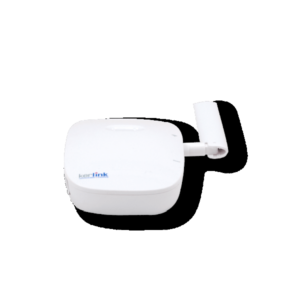

Based on LoRa® technology, KERLINK iFemtoCell Evolution Gateway (GSM) which is perfectly designed for indoor public network extension. (additional coverage in buildings to densify public network availability and continuity of service) Also, this is for ad-hoc indoor private coverage, That is like manufacturing, logistics. Also for industrial sites requiring continuous connectivity for their IoT applications.
Kerlink is a chief supplier of IoT availability organizations, programming and answers. Which is for organizations, urban communities, ventures and organization administrators to rapidly and effectively convey public and private IoT organizations.
Featured Highlights:
- Indoor LoRa® Gateway,Ingress protection (IP30).
- Supported unlicensed bands: 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America) as well.
- Supported LoRaWAN® regional parameters: EU863-870, IN865-867, RU864-870, US902-928, AU915-928, AS923, KR920-923.
- 8ch RX (125 kHz, multi Spreading Factor) 1ch RX (250KHzor 500kHz, mono Spreading Factor) 1ch RX (FSK) to get 10ch RX 1ch TX.
- Backhaul connectivity: Wi-Fi 2.4GHz and Ethernet (RJ45) 3G/4G external dongle (in option).
Powered by:
- Power supply (230VAC/12VDC) with provided jack connector 2.5mm/5.5mm.
- Uninterrupted power supply with 24h autonomy (accessory).
- Highly secured device relying on a hardware secure core.
Easy to Deployment:

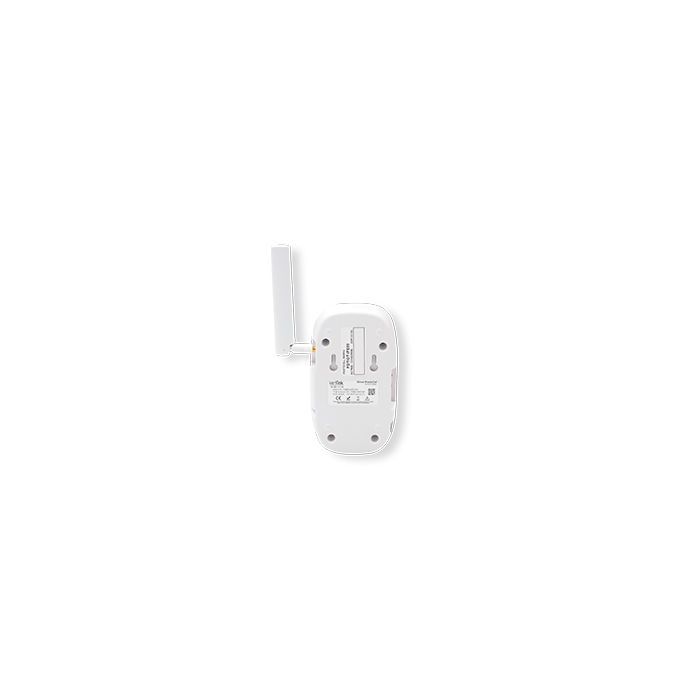

- Easy – installation: Wall mounting by 2 oblong holes or lay on a table (4 domes),
- -Access to connectivity Easy :
— Ethernet 10/100 Mbps (RJ45),
— 1 LED (green/red) for Backhaul status,
— 3 programmable LEDs,
– 1 LED (green/red) for Power status,
– WPS push button,
– 1 LED (green/red) for LoRa® rf activity Rx/Tx, - USB (Type A) connector for configuration,
- SMA or RP-SMA for LoRa® antenna,
- Reset button,
- Simple and convenient configuration, management, control, and update via the Kerlink Wanesy™ Management Center. (Alarm notifications, Firmware upgrade, platform statistics, RF statistics, RF spectrum analyzer…)
- Similarly, Remotely configurable, manageable, via intuitive Web GUI.
- After that, Remote access via SSH.
Includes:
- Kerlink Ifemtocell PDTIOT-IFE04
- 1 Year Standard exchange warranty
